The Ultimate Guide to Calculating Metal Weights (Formulas, Tables & Free Calculator)
Whether you are an estimation engineer quoting a multi-million-dollar structural project, a fabricator ordering raw materials, or a logistics manager planning transport loads, knowing exactly how much your metal weighs is non-negotiable.
A tiny miscalculation in the weight of a single steel beam might not seem like a big deal. However, multiply that error by hundreds of beams across an entire building, and you are suddenly facing massive budget overruns, crane capacity failures, or catastrophic structural issues.
In this comprehensive guide, we will break down everything you need to know about calculating metal weights. We will cover the core mathematical formulas for standard shapes (plates, pipes, bars), dive into standard European and Russian profiles (EN, DIN, GOST), and provide the baseline densities for various industrial metals.
(Note: If you want to skip the math, use our embedded Aienginear Metal Weight Calculator at the top of this page to instantly compute weights and generate a PDF Bill of Quantities!)
Why Accurate Metal Weight Calculation Matters
Before diving into the formulas, it is important to understand why precision is the backbone of the metal fabrication and construction industries.
- Accurate Cost Estimation (BOQ): Metals are sold by weight. Whether you are buying carbon steel plates or titanium alloys, the price is quoted per ton or per kilogram. If your Bill of Quantities (BOQ) underestimates the weight, your profit margin vanishes.
- Logistics and Transportation: Trucks, shipping containers, and freight trains have strict maximum weight capacities. Overloading a vehicle is illegal and dangerous. Accurate weight calculations ensure you order the correct number of trucks and comply with highway regulations.
- Lifting and Rigging Safety: When a crane lifts a heavy structural assembly, the rigging crew must know the exact load weight to select the correct slings, shackles, and crane configurations.
- Structural Integrity: In structural engineering, the “dead load” (the weight of the structure itself) must be precisely calculated to ensure the foundations and supporting columns can hold it up.

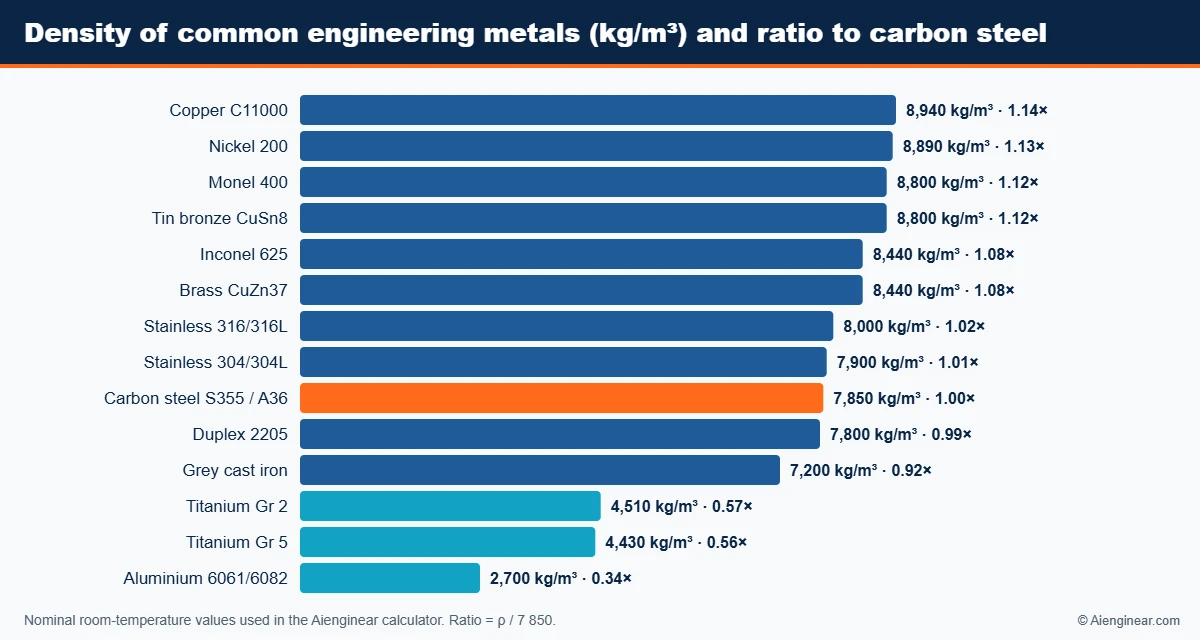

Standard Metal Densities You Need to Know
The foundation of every metal weight calculation is density. Density is the measure of how much mass is contained in a specific volume, typically expressed in kilograms per cubic meter (kg/m³) or grams per cubic centimeter (g/cm³).
Different materials have vastly different densities. For instance, a block of aluminum is nearly three times lighter than an equivalent block of carbon steel.
Here is a reference table of the most common industrial metal densities:
| Metal Type | Grade / Standard | Density (kg/m³) | Density (g/cm³) |
| Carbon Steel | Standard Mild Steel | 7,850 kg/m³ | 7.85 g/cm³ |
| Stainless Steel | 304 / 316 Grades | 8,000 kg/m³ | 8.00 g/cm³ |
| Aluminum | 6061 / 7075 Alloys | 2,700 kg/m³ | 2.70 g/cm³ |
| Copper | Pure Copper | 8,900 kg/m³ | 8.90 g/cm³ |
| Brass | Standard Commercial | 8,500 kg/m³ | 8.50 g/cm³ |
| Cast Iron | Gray Cast Iron | 7,200 kg/m³ | 7.20 g/cm³ |
| Titanium | Grade 5 (Ti-6Al-4V) | 4,500 kg/m³ | 4.50 g/cm³ |
Pro Tip: When calculating manually using millimeters, it is often easier to convert all your measurements to meters first, calculate the volume in cubic meters (m³), and then multiply by the kg/m³ density from the table above.

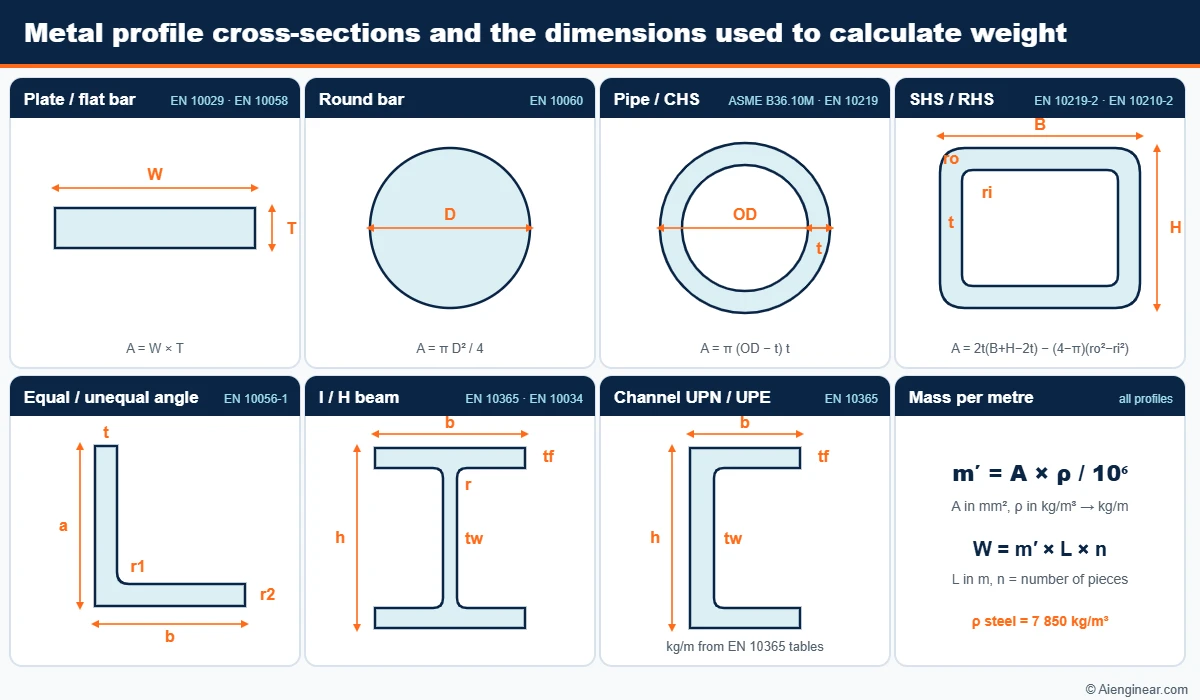

How to Calculate Metal Weight Manually (The Formulas)
If you are out in the field without access to a software tool, you need to know how to calculate weights by hand. The universal formula for finding the mass of any object is:
Weight = Volume × Density
The tricky part is calculating the volume based on the specific shape of the metal profile. Here are the formulas for the most common geometric metal shapes.
1. Steel Plate Weight Formula
Plates and sheets are the simplest shapes to calculate. You just need to find the volume of a rectangular prism.
- Formula: Weight = Length × Width × Thickness × Density
- Example: A carbon steel plate that is 2 meters long, 1 meter wide, and 10 millimeters (0.01 meters) thick.
- Calculation: 2m × 1m × 0.01m = 0.02 m³.
- 0.02 m³ × 7850 kg/m³ = 157 kg.
2. Round Bar Weight Formula
To find the weight of a solid cylinder (round bar), you must calculate the area of the circular cross-section and multiply it by the length.
- Area Formula: Area = (π × Diameter²) / 4
- Weight Formula: Weight = Area × Length × Density
- Example: A 6-meter-long steel round bar with a 50mm (0.05m) diameter.
- Calculation: (3.14159 × 0.05²) / 4 = 0.00196 m².
- 0.00196 m² × 6m × 7850 kg/m³ = 92.3 kg.
3. Flat Bar and Square Bar Formulas
- Square Bar: Weight = (Side × Side) × Length × Density
- Flat Bar: Weight = Width × Thickness × Length × Density
4. Seamless Pipe and Tube Weight Formula
Pipes are hollow cylinders. To find the volume of the actual metal, you must calculate the total outer volume and subtract the empty inner volume.
- Formula: Area = [π / 4] × (Outer Diameter² – Inner Diameter²)
- Note: Inner Diameter (ID) = Outer Diameter (OD) – (2 × Wall Thickness).
- Weight Formula: Weight = Area × Length × Density

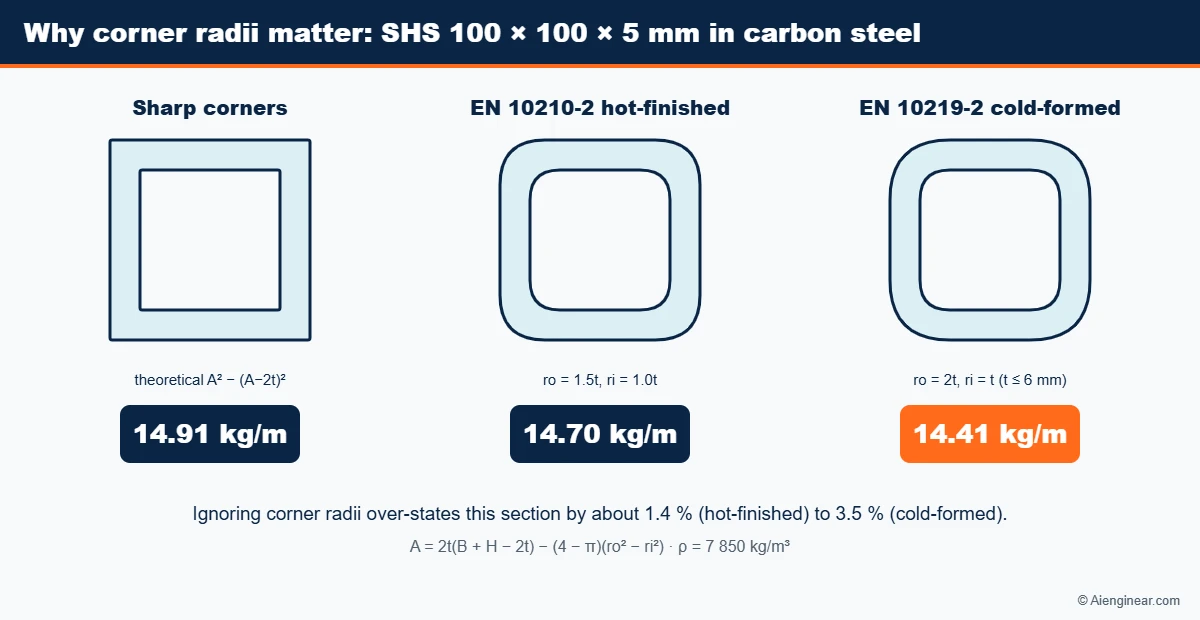

5. Hollow Sections (CHS, SHS, RHS)
Hollow structural sections follow the same logic as pipes: calculate the gross outer area and subtract the inner void.
- CHS (Circular Hollow Section): Identical to the pipe formula.
- SHS (Square Hollow Section): Area = (Outer Side²) – (Inner Side²). Inner side is the Outer Side minus twice the wall thickness.
- RHS (Rectangular Hollow Section): Area = (Outer Width × Outer Height) – (Inner Width × Inner Height).
European and Russian Standard Profiles (EN, DIN, GOST)
While calculating the weight of a flat plate or a round bar is straightforward math, estimating the weight of structural beams and channels is much more complex.
Why? Because structural shapes like I-Beams and U-Channels have tapered flanges, rounded internal root fillets, and toe radii. You cannot simply calculate them as overlapping rectangles. Therefore, engineers rely on standardized manufacturing tables that provide the exact kg/m (kilograms per meter) for specific profiles.
1. IPE, HEA, and HEB Beams (EN 10034)
The European standard EN 10034 defines the tolerances for structural steel I- and H-sections.
- IPE Beams: These are narrow or medium-flange I-beams. They are highly efficient for bending moments and are the most common structural beam in Europe.
- HEA Beams (IPBL): Light-series wide-flange H-beams. They provide excellent stability and are often used for columns.
- HEB Beams (IPB): Medium-series wide-flange H-beams. They have thicker webs and flanges than HEA beams, making them significantly heavier and capable of bearing massive loads.
2. IPN Beams (DIN 1025-1)
IPN beams are the traditional European I-sections. Unlike IPE beams, which have parallel inner flange surfaces, IPN beams have tapered (sloped) inner flanges. This makes them slightly heavier and older in design, but they are still widely used in industrial applications.
3. UPN Channels (EN 10279)
Standard European U-channels have a C-shaped cross-section with tapered flanges. They are primarily used in structural framing, bracing, and machinery bases. The EN 10279 table dictates the exact kg/m for sizes ranging from UPN 30 up to UPN 400.
4. GOST Channels (Russian Standard 8240-97)
The GOST standards (Государственный стандарт) are the technical standards maintained by the Euro-Asian Council for Standardization, Metrology, and Certification (EASC).
The GOST 8240-97 standard applies to hot-rolled steel channels (Швеллер). These are heavily utilized in Eastern Europe, Central Asia, and the Middle East. Sizes are typically denoted by numbers such as 10п, 14п, or 20п, where the number roughly corresponds to the channel height in centimeters.
(Our aienginear calculator includes a dedicated GOST 8240-97 database to instantly pull the correct kg/m for these highly specific profiles).
Generating a Bill of Quantities (BOQ)
A Bill of Quantities is a comprehensive document detailing all the materials required for a project. When creating a BOQ for steelwork, you must list:
- The profile type (e.g., IPE 200, 10mm Plate, Ø50mm Pipe)
- The material grade (e.g., Carbon Steel, SS316)
- The unit weight (kg/m)
- The length of each piece
- The total quantity of pieces
- The total extended weight (kg or tonnes)
Instead of building complex Excel spreadsheets from scratch, modern fabricators use automated BOQ managers. By using the Aienginear metal weight calculator, you can calculate individual profiles and add them directly to a digital BOQ. Once your material list is compiled, you can export it as a clean, professional PDF engineering report to hand off to your purchasing department or client.
Frequently Asked Questions (FAQ)
How much does 1 cubic meter of steel weigh?
One solid cubic meter of standard carbon steel weighs approximately 7,850 kilograms (or 7.85 metric tonnes).
What is the formula for steel pipe weight?
The most practical formula used by fabricators for steel pipe weight (in kg/m) is: (Outer Diameter in mm – Wall Thickness in mm) × Wall Thickness in mm × 0.02466.
What is the difference between the density of standard steel and stainless steel?
Standard carbon steel has a density of roughly 7,850 kg/m³. Stainless steel (such as grades 304 and 316) contains heavy alloying elements like chromium and nickel, pushing its density slightly higher to about 8,000 kg/m³. If you use carbon steel calculations for a massive stainless steel project, your final weight will be short by nearly 2%.
Why is my manual calculation slightly different from standard beam tables?
Manual calculations usually treat shapes as perfect rectangles. Standard engineering tables (such as EN 10034) account for the additional mass added by the curved “fillet radii” where the web meets the flange, as well as the exact manufacturing tolerances. For structural beams, always trust the standard table values over manual rectangular math.
Can I calculate the weight of aluminum using steel tables?
Yes, but you must apply a conversion factor. Calculate the weight of the profile as if it were steel, and then divide that number by 3 (or multiply by 0.344). Aluminum (2,700 kg/m³) is approximately 34.4% the weight of carbon steel (7,850 kg/m³). Our digital calculator handles this material density conversion automatically.
