Return Bend Dimensions: ASME B16.9 180° Long & Short Radius Chart (mm & inch)

What is a 180° return bend?

A 180° return — also called a return bend, U-bend fitting or simply a “return” — is a factory-made buttwelding fitting that reverses the direction of a pipe run through a half circle. It is the building block of furnace and heater coils, heat-recovery and jacketed coils, cooling loops, expansion loops in tight racks and any layout where two parallel lines must be joined end to end.

Two terms are often mixed up on drawings and in purchase orders:

• Return (fitting): a standard catalogue fitting made to ASME B16.9, with fixed O and K for each size and radius. This article covers these.
• Pipe bend: a length of straight pipe bent cold or by induction to any radius (commonly 3D or 5D). Pipe bends are designed to the piping code and the purchase specification — for pipeline induction bends, ASME B16.49 — not to the B16.9 dimension tables.
• Two 90° elbows: a field-made alternative that gives the same LR centre-to-centre but adds a girth weld. See our ASME B16.9 pipe elbow dimensions chart for the elbow values.

How return bend dimensions O, K and OD are defined

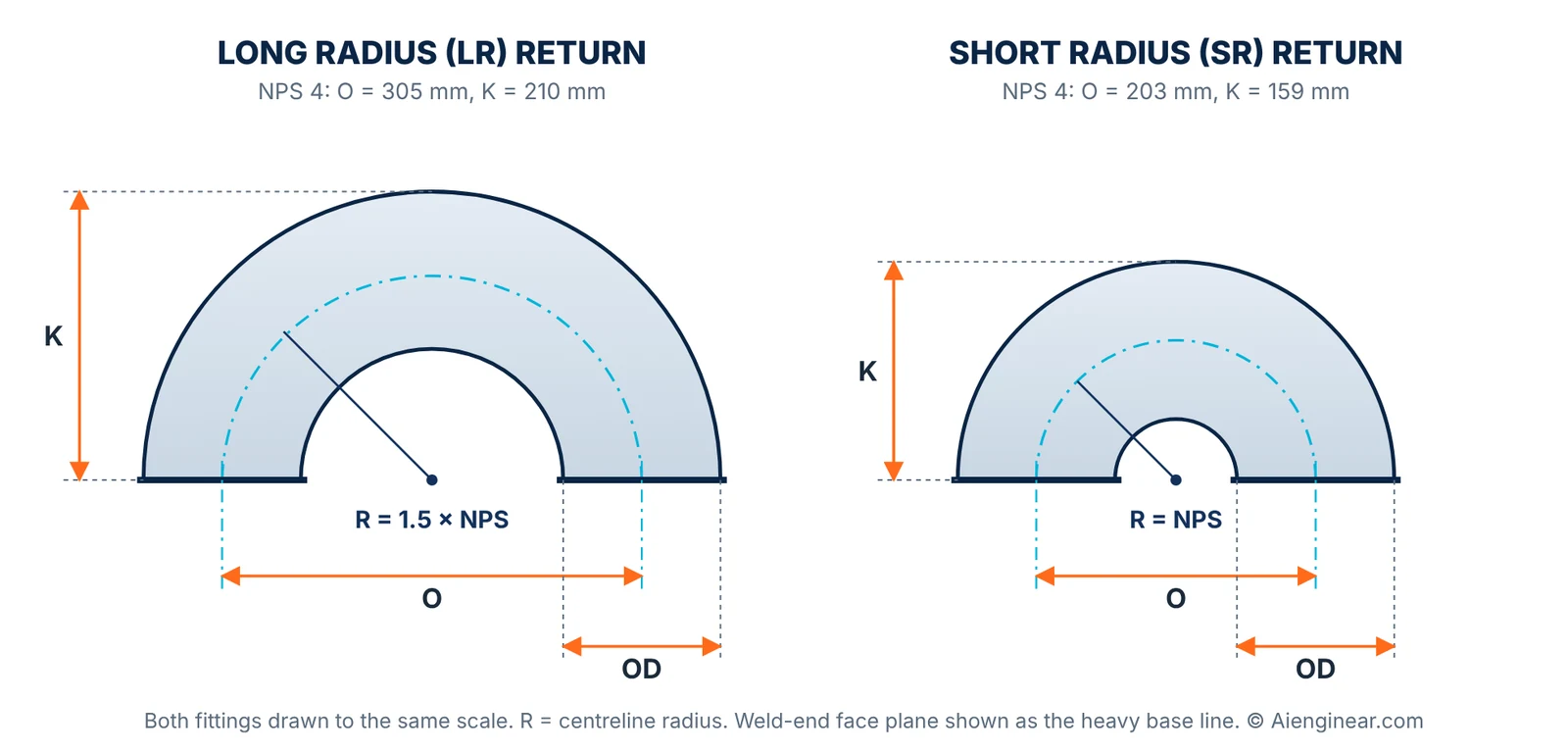

All return bend dimensions in the chart below refer to one of the callouts in Figure 1:

• O — centre-to-centre. Distance between the centrelines of the two legs, measured in the plane of the weld ends. In a coil this is the leg pitch.
• K — back-to-face. Distance from the plane of the weld-end faces to the outermost point on the back of the bend. This is how far the fitting sticks out past the pipe ends.
• OD — outside diameter at the bevel. Matches the pipe OD for the same NPS. NPS is a size label, not a measured diameter: NPS 4 has an OD of 114.3 mm, not 101.6 mm. See the industrial pipe NPS and schedule guide.
• R — centreline radius. Half of O. LR = 1.5 × NPS, SR = 1.0 × NPS (in inches).

Return bend finder

Return bend dimensions chart: 180° LR and SR (mm and inches)

Table 1 lists every long-radius and short-radius return size in ASME B16.9. Use the buttons in the table header to switch between mm and inches, print a clean Aienginear-branded copy (or save it as PDF), download the data as CSV, or copy it straight into Excel.

— = size not listed for SR returns (B16.9 starts short-radius returns at NPS 1). Millimetre values are the metric values listed in ASME B16.9; they are rounded from the inch values, so do not back-convert them.

Return bend dimensions formulas and quick checks

B16.9 return dimensions follow simple geometry, which makes it easy to sanity-check a supplier drawing or a value typed into a 3D model:

Worked check — NPS 6 LR: O = 3 × 6 in = 18 in = 457 mm. K ≈ 457/2 + 168.3/2 = 228.5 + 84.2 = 312.7 mm. B16.9 lists 313 mm ✓. If a drawing shows a K that misses this check by more than a few millimetres, it is probably a different radius, a different standard or a typing error.

Return bend dimensions tolerances (ASME B16.9)

A return can be within its own tolerances and still cause fit-up trouble on a coil, because errors stack across every leg. Table 2 lists the B16.9 limits that apply to returns; Table 3 lists the angularity limits for weld-end faces.

Notes: (1) Out-of-roundness at the bevel is the sum of the absolute plus and minus OD tolerances. (2) The OD tolerance may be exceeded locally where the fitting is formed with extra thickness to meet the B16.9 design requirement. (3) The purchaser specifies the inside diameter and nominal wall at the ends; unless stated otherwise, the ID tolerance applies to OD − 2 × nominal wall. (4) Returns are only listed to NPS 24; tolerances for larger fittings are in the standard.

Long radius or short radius: how to choose

Note: the old ASME B16.28 rated short-radius fittings at 80% of the calculated rating for straight seamless pipe of the same material and wall. When specifying SR returns today, confirm the pressure design basis in the current B16.9 text and in your piping code (for example ASME B31.3) rather than assuming SR and LR are interchangeable.

Coil layout calculator

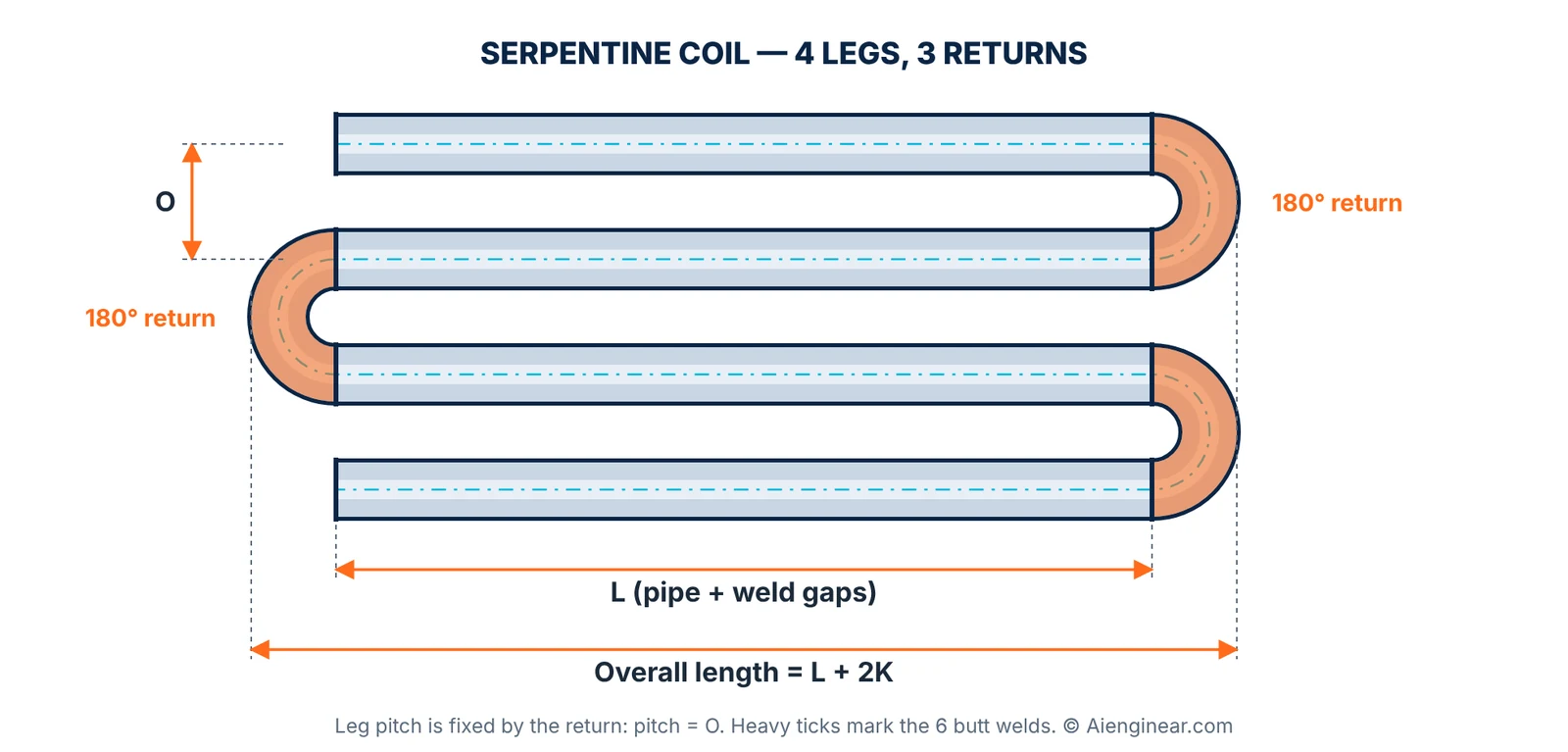

For a serpentine coil with all legs the same length and all ends aligned: leg pitch = O, overall height = (N − 1) × O + OD, and overall length = pipe length + weld gaps + 2K (only one K when there are two legs). The calculator below does this for you and counts the welds. Once the envelope is fixed, set the support spacing for the straight legs with the pipe support spacing calculator.

Worked example: six legs of NPS 3 pipe, 3000 mm each, short-radius returns, 3 mm root gap. SR NPS 3 gives O = 152 mm and K = 121 mm. Overall height = 5 × 152 + 88.9 = 848.9 mm. Overall length = 3000 + 2 × 3 + 2 × 121 = 3248 mm. Five returns, ten butt welds. Switching to LR returns raises the height to 5 × 229 + 88.9 = 1233.9 mm — a 45% taller coil for the same heat-transfer length.

Weld ends, materials and marking

Weld-end preparation

B16.9 returns are supplied with buttwelding ends prepared to ASME B16.25 unless the order says otherwise. For wall thicknesses from about 3 mm to 22 mm the standard end is a single 37.5° ± 2.5° bevel with a 1.6 mm ± 0.8 mm root face; heavier walls use a compound bevel. Thin walls may be supplied square-cut. Where the return and pipe walls differ, specify the internal taper so that the transition stays within the piping code limits.

Common material specifications

For grade selection by service and temperature, see the pipe material types and selection guide.

Marking

Each return should carry the manufacturer’s name or trademark, the material and product designation (for example WPB or WP316L), the schedule or nominal wall, and the size. Check the marking against the mill test certificate (EN 10204 3.1 or as specified) before the fitting goes into a spool.

Receiving inspection checklist

Use this list when returns arrive on site to confirm the return bend dimensions, tolerances and paperwork before the fittings go into spools.

• Marking matches the purchase order: size, schedule/wall, grade, heat number.
• Mill test certificate is present and the heat number on it matches the fitting. Our pipe fittings inspection guide covers the full visual, dimensional and NDT routine.
• OD at both bevels and out-of-roundness are within Table 2.
• Centre-to-centre O and back-to-face K are within ±6.4 mm (±9.7 mm on O for NPS 10–24).

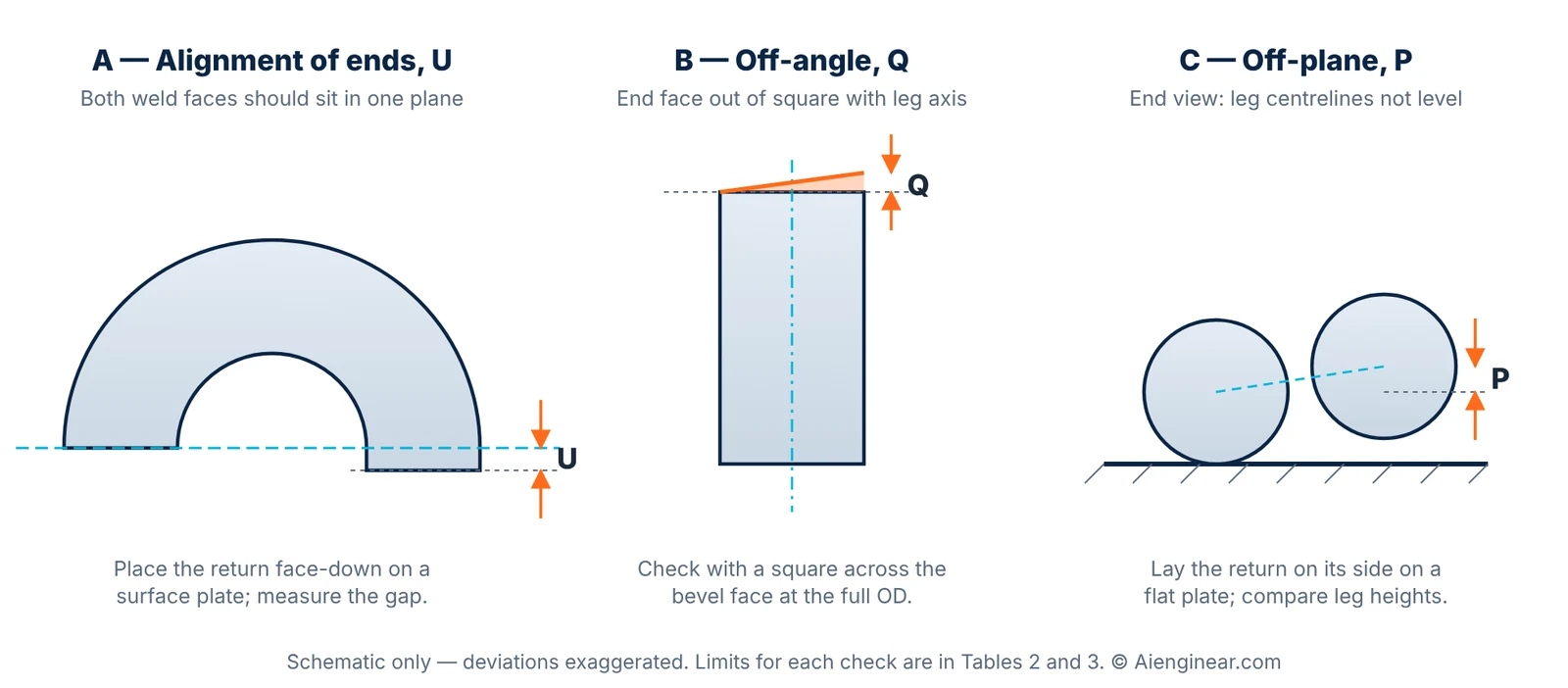

• Both end faces sit flat on a surface plate within the alignment tolerance U.
• Off-angle Q and off-plane P are within Table 3.
• Wall thickness at the intrados and extrados is at least 87.5% of nominal (ultrasonic check).
• Bevel angle, root face and any internal taper match B16.25 and the weld procedure.
• No laps, cracks, arc strikes or deep grinding marks; ends protected with caps.

Key facts at a glance

Frequently asked questions

Test your knowledge: return bend dimensions quiz

Ten quick questions on ASME B16.9 return bend dimensions, tolerances and weld ends. Pick an answer to see the explanation straight away.

Related Aienginear guides and tools

References

1. ASME B16.9-2024, Factory-Made Wrought Buttwelding Fittings. The American Society of Mechanical Engineers. asme.org
2. ASME B16.25, Buttwelding Ends. The American Society of Mechanical Engineers.
3. ASME B31.3, Process Piping. The American Society of Mechanical Engineers.
4. MSS SP-43, Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications. Manufacturers Standardization Society.
5. ASME B16.28-1994, Wrought Steel Buttwelding Short Radius Elbows and Returns (withdrawn; content incorporated in B16.9).
6. ASTM A234/A234M, A403/A403M, A420/A420M, A860/A860M — wrought fitting material specifications. ASTM International.

Disclaimer: This page is an independent engineering guide. ASME and ASTM standards are copyrighted; the values here are given for layout, estimating and checking. For fabrication, procurement and acceptance, use the edition named in your contract and the manufacturer’s certified drawings. Dimensions alone do not establish pressure rating.
