Aienginear’s engineering calculators are free, browser-based tools for the calculations that process, piping and mechanical engineers repeat every week: line sizing, pressure drop, relief loads, vessel thickness, flange torque, test pressures and material take-offs. This page lists every tool in one place, explains which one to use at each project stage, and shows the standard or method behind each result so you can judge it with confidence.

1. How to choose the right engineering calculator

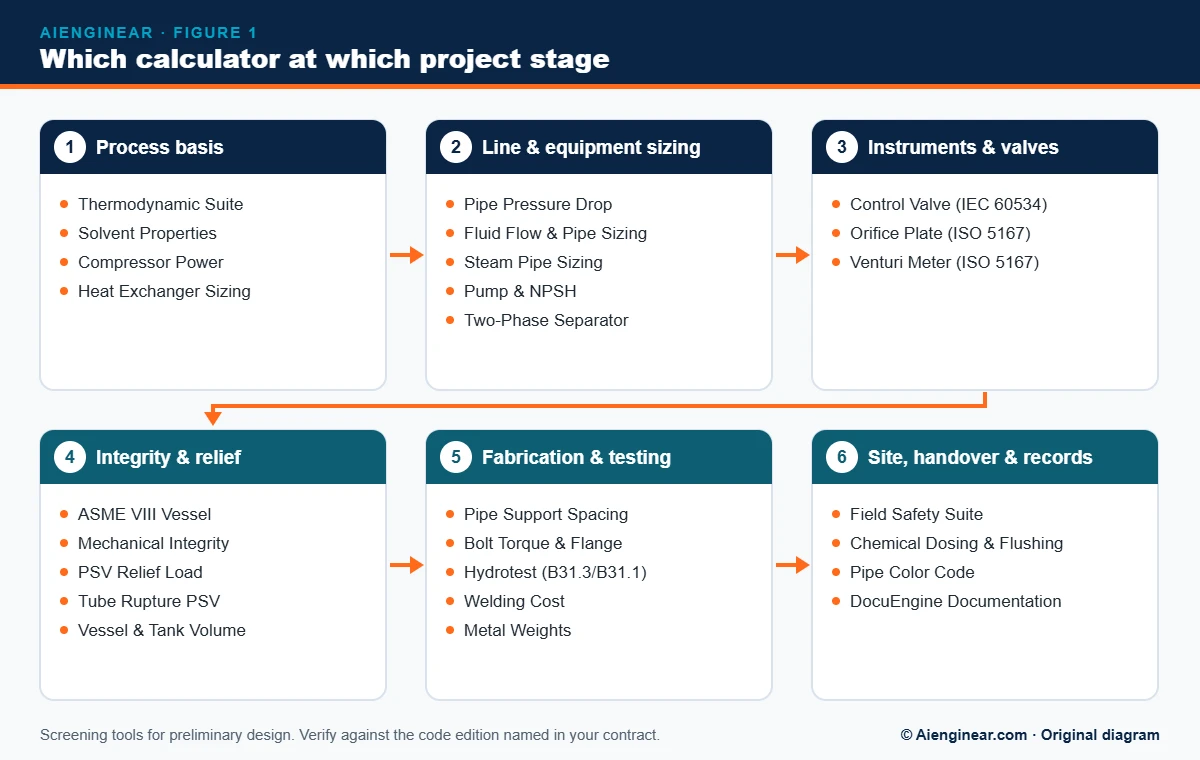

Start from the question you need answered, not from the tool name. Most calculation chains on a plant project follow the same order: fix the process basis, size lines and equipment, select instruments and valves, protect against overpressure, then fabricate, test and hand over. Figure 1 maps every Aienginear calculator to that sequence, so the output of one tool becomes the input of the next.

Three habits make any calculator more reliable: confirm the unit system before entering data, use actual pipe inside diameters rather than nominal sizes, and keep the design margin you apply visible in the record instead of hiding it in the inputs.

2. Quick selector: which calculator answers your question?

3. Process, flow and thermal calculators (13)

These tools cover fluid behaviour from properties to delivered head. Use them in front-end and detailed design to size lines, pumps, compressors, control valves, flow elements, separators and exchangers. Each one shows the correlation it uses, so you can tell whether the method suits your fluid and flow regime.

4. Pressure integrity, relief and testing calculators (9)

This group keeps pressure equipment inside its design envelope. It covers vessel thickness and MAWP, relief loads and orifice selection, pressure testing, flange make-up, volumes for level and fire-case work, and the site-safety checks that go with them. Relief and vessel results are the most consequential on a project, so always pair them with an independent review.

5. Piping, mechanical and fabrication calculators (7)

The fabrication and mechanical tools turn a design into steel on site: support spans, pipe dimensions and weights, identification colours, welding cost, insulation economics and controlled documentation. They are built for take-offs, quotations and shutdown planning as much as for design.

6. Energy and electricity calculators (4)

The electricity tools are aimed at households, offices and small sites rather than process plants. They estimate kWh, monthly bills, solar payback and air-conditioning savings from appliance ratings and local tariffs.

7. Standards behind the results

Every calculator states the method it applies. Table 6 lists the main codes and standards referenced across the toolkit, the edition position on the review date, and which tools use them. Aienginear paraphrases and applies published methods; it does not reproduce copyrighted code tables. Where a project names an older or newer edition, that edition governs.

8. Worked example: one steam line, six calculators

Consider a new carbon-steel steam header between a boiler house and a process unit. The calculation chain below shows how the tools hand results to each other.

1. Size the line with the Steam Pipe Sizing Calculator: enter flow, pressure and temperature, then accept the smallest size that meets both the velocity and the pressure-drop limit.
2. Confirm the loss over the full route, including bends and valves, with the Pipe Pressure Drop Calculator.
3. Lay out the supports using the Pipe Support Spacing Calculator with the insulated, water-filled weight for the test case.
4. Set flange make-up with the Bolt Torque & Flange Calculator for the selected class and gasket.
5. Plan the hydrotest with the Hydrotest & Pressure Test Calculator.
6. Record the package in DocuEngine, attaching the printed tables from each tool.

Hydrotest pressure check (ASME B31.3 method)

ASME B31.3 hydrostatic leak test:  PT = 1.5 × P × RR
RR = ST / S   (stress ratio, limited to a maximum of 6.5)

Design pressure P = 20 barg, assumed stress ratio RR = 1.20
PT = 1.5 × 20 × 1.20 = 36 barg minimum test pressure

Then confirm the test does not stress any part above yield
and that attached equipment can take the test pressure.

The ratio 1.20 is an illustration only; take S_T and S from the allowable-stress table of the B31.3 edition in your contract for the actual material and design temperature. Power piping under B31.1 uses its own test rules, which the calculator applies separately.

9. How accurate are the results?

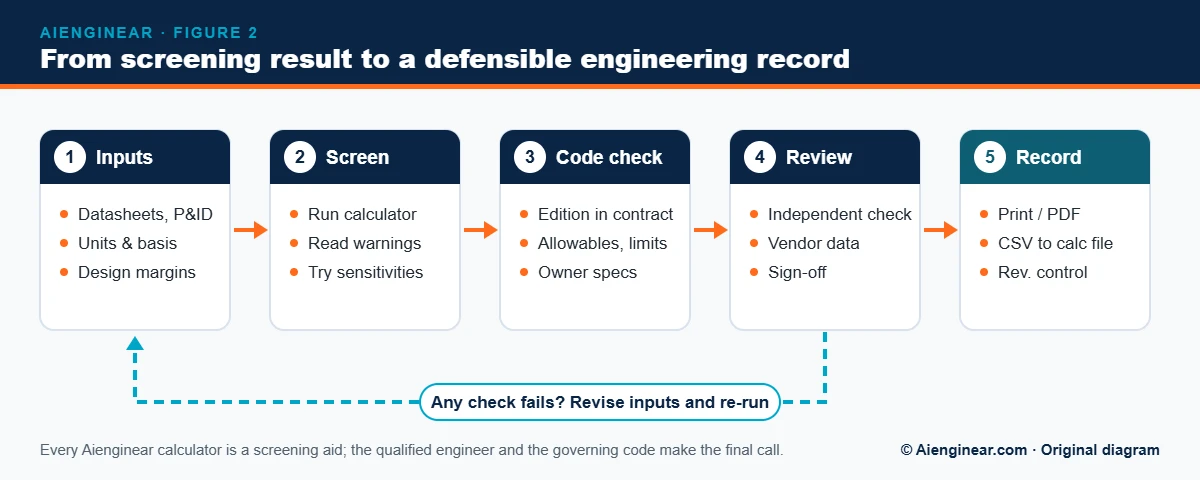

The calculators implement published equations exactly, so the arithmetic is not the weak point — the inputs and the method choice are. Results are as good as the fluid properties, pipe data and assumptions you supply. Figure 2 shows the review loop we recommend before any number goes on a datasheet or drawing.

• Check the method fits the case. A single-phase friction model will understate losses in flashing or slug flow.
• Match the code edition. Allowable stresses and rules change between editions; the edition in your contract governs.
• Read every warning. Choked-flow, cavitation, erosional-velocity and minimum-thickness flags are there for a reason.
• Keep an independent check for relief, vessel and test calculations, and confirm against vendor data at purchase.
• Print or export the table and file it with the revision of the drawing or datasheet it supports.
